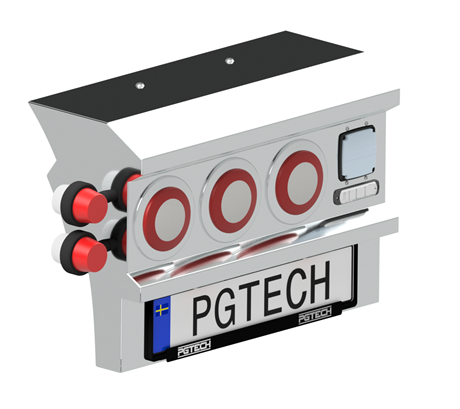

Pgtech Tail Light Box Mudguard Mounted for Volvo
Our tail light boxes have space for 3 Jokon or Izeled lamps, plus 1 Work light and 1 Flashing light.
These mudguard mounted tail light boxes are designed for Volvo with mudguard braces that are found on construction vehicles. Tractor units do not have the same braces.
On the outer side, there are 2 holes for Lollipops (19mm holes for the rubber arm only, you can obviously drill holes if you wish to use the plastic foot) and on the inside, there are 2 holes, 1 for attaching the Contact that matches the vehicle's Cabling and 1 for the extra Cabling used to connect both the work light and the flashing light.
Thus, the flashing light and work light are on a separate contact, and then you can purchase an additional part which you can connect, for example, to an Electrical box in the frame.
To mount the tail light boxes on the mudguards, you use the supplied Brackets which screw into existing mounting points on the mudguard braces, making the assembly and connection of the lamps very easy, and also making it simple to replace a Lamp or similar after a few years.
The left light box is prepared for number plate lighting and a plate holder. (2 LED lamps are fitted on the underside of the bracket)
The light boxes are delivered in pairs without Lighting, allowing you to easily choose how you want to equip the light boxes!
The Lighting options listed under "Buy together" are the most common Lamps used, but if you'd prefer something else, you can easily go to Lighting -> LED tail lights and choose for yourself.
Fog light / Tail light is available in the same model of LED lamp.
An Electrical box / Appliance box, for which you will need 2 for each light box due to the numerous cables and limited space, is available under "Buy together".
The 7-pin Cabling fits Volvo's and Scania's original Contacts, if you have another lorry brand, we also have adapter Cabling available.
Want your tail light boxes completely ready mounted and connected? Just opt for assembly/connection!
Need help with your order? Don't hesitate to call our customer service at 033-122028.
Place your order here in the webshop and we'll get back to you regarding the placement of lamps and connections.
If you're not a fan of the glossy surface, they can certainly be painted in your Colour of choice.
